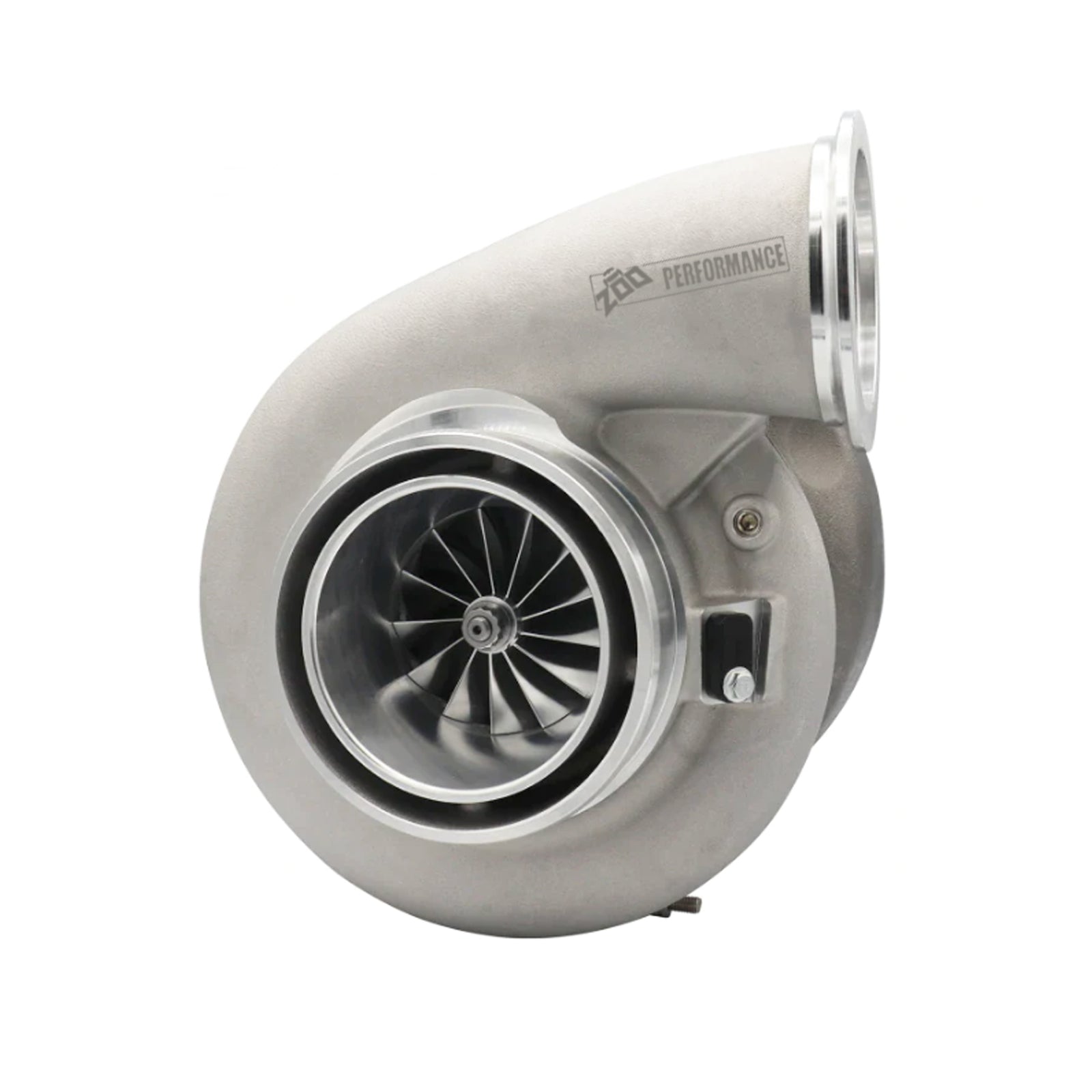

  • G45-1125HP Series 67mm Turbo

    G45-1125 Specifications:

    - 600-1125HP Rating   / 2.0L - 8.0L Displacement
    - Dual Ball Bearing
    - Ported shroud compressor cover
    - Speed sensor port included in compressor cover.
    - Inlet Options:

    • 1.01 A/R with V-Band Inlet
    • 1.15 A/R with V-Band Inlet
    • 1.28 A/R with V-Band Inlet
    • 1.44 A/R with V-Band Inlet
    • 1.01 A/R with T4 Inlet
    • 1.15 A/R with T4 Inlet
    • 1.25 A/R with T4 Inlet
    • 1.44 A/R with T4 Inlet

    - Compressor Specifications:

    • 67mm Compressor Inducer wheel
    • 102mm Compressor Exducer wheel
    • 0.85 A/R

    - Turbine Specifications:

    • 89mm Turbine Inducer wheel
    • 82mm Turbine Exducer wheel

    Our G45 series turbos are manufactured specifically with a combination of the highest quality components and exquisite design with no expense spared! The dual ceramic ball bearing design provides an optimal turbo response and prolongs the lifespan of your turbo.

    Our G45 series turbos are fitted with a 13-blade point milled billet aluminium compressor wheel with an aerodynamic tapered tip. The aluminium compressor housing is also fitted with a sensor port. Our compressor wheels are designed with the latest technology maximizing horsepower and boost response and have temperature ratings of up to 200°C. The compressor housings are also fitted with a speed sensor port as well as an anti-surge compressor wheel inlet to increase surge resistance and provides reliable, continuous power.

    The turbine wheel is manufactured from Inconel which is a high quality super alloy and does a fantastic job at maintaining strength at high operating temperatures of up to 900°C. Our turbine housings are made from a high grade cast iron providing ultimate durability in these high performance applications.

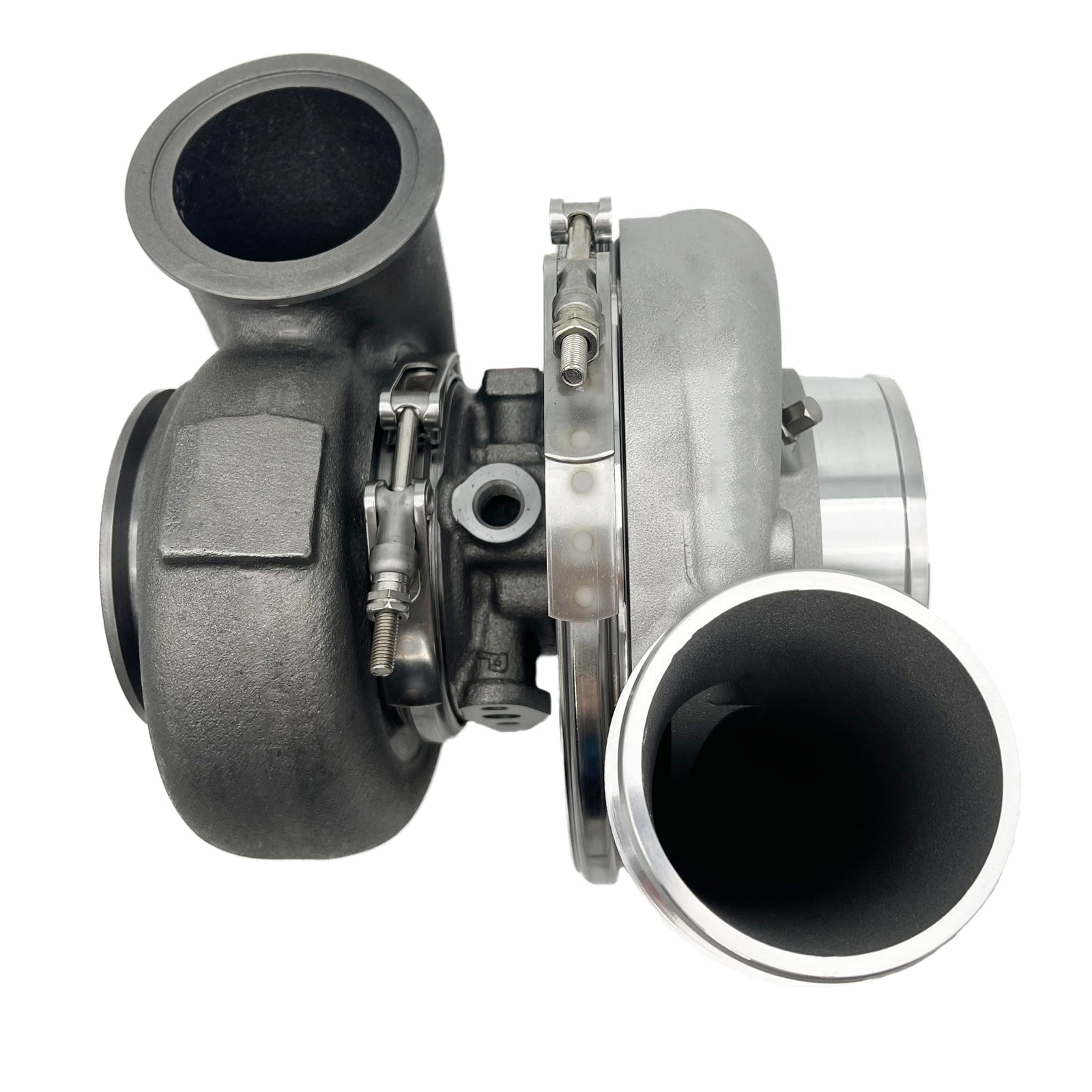

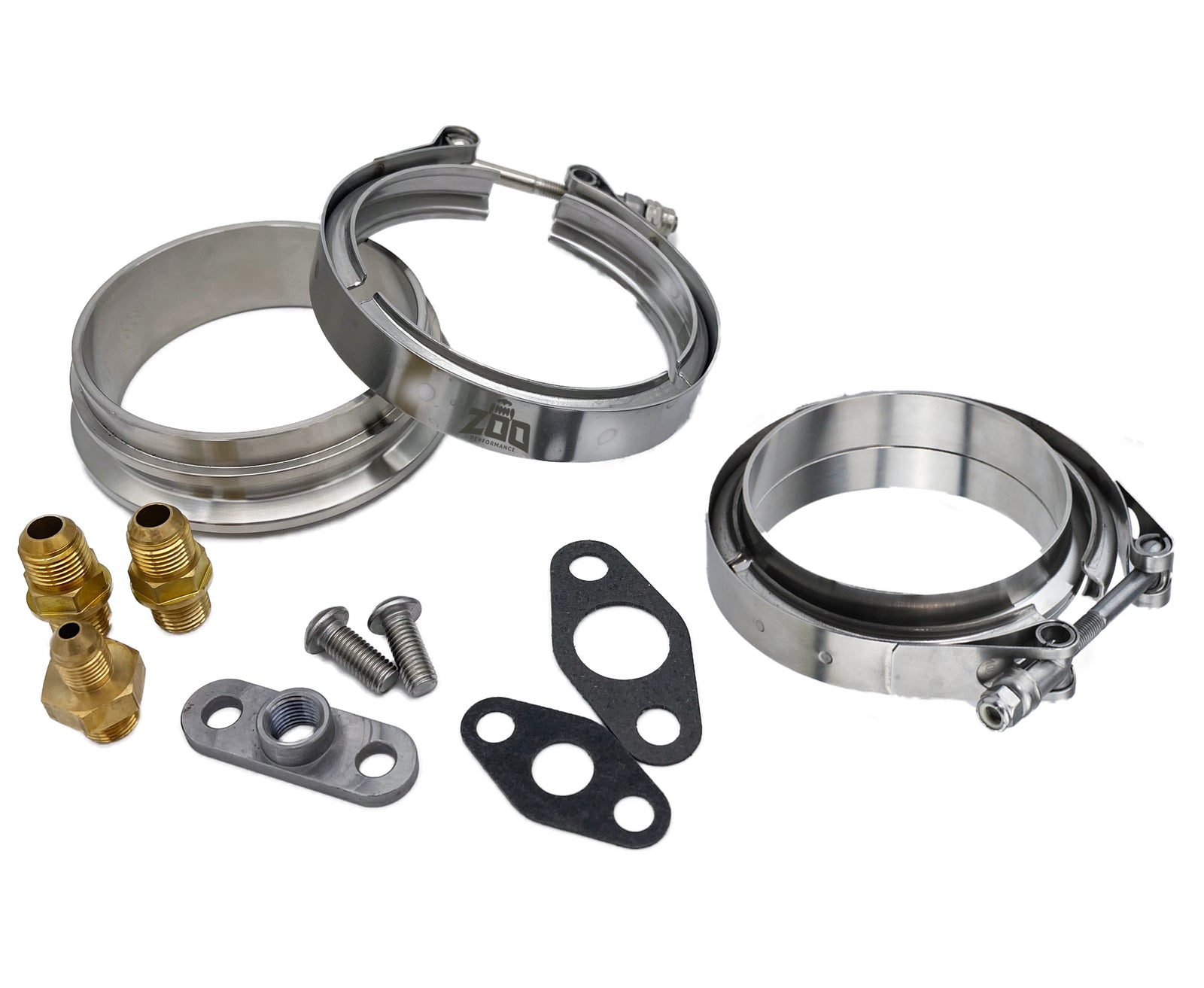

    Turbine housing options include V-band inlet and T4 inlet single scroll. Each and every turbo are supplied with all the required parts such as stainless steel polished v-band clamps, flanges, water fittings, turbo drain gasket and NPT 1/4" to -4AN turbo oil feed fitting with 1.6mm restrictor hole.
