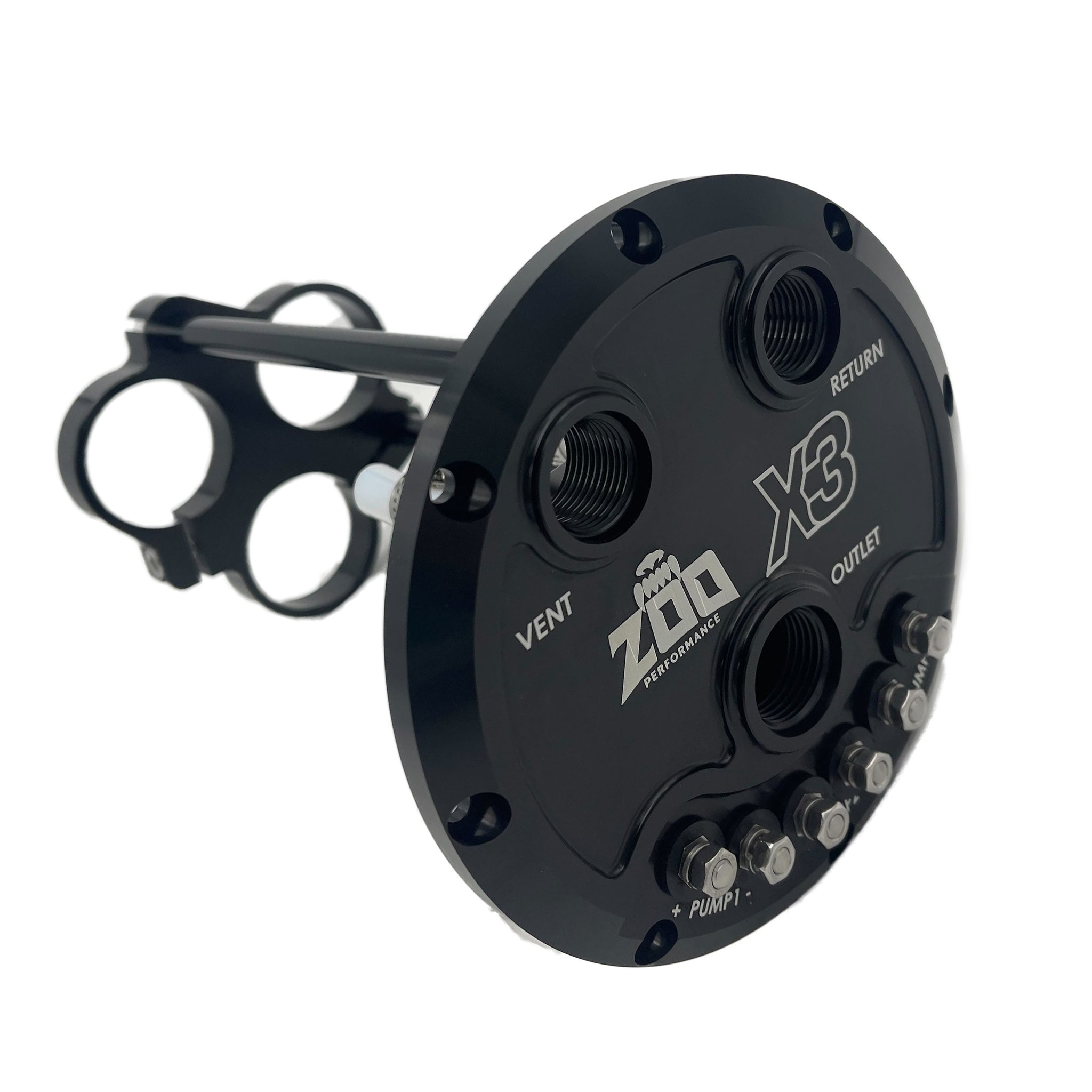

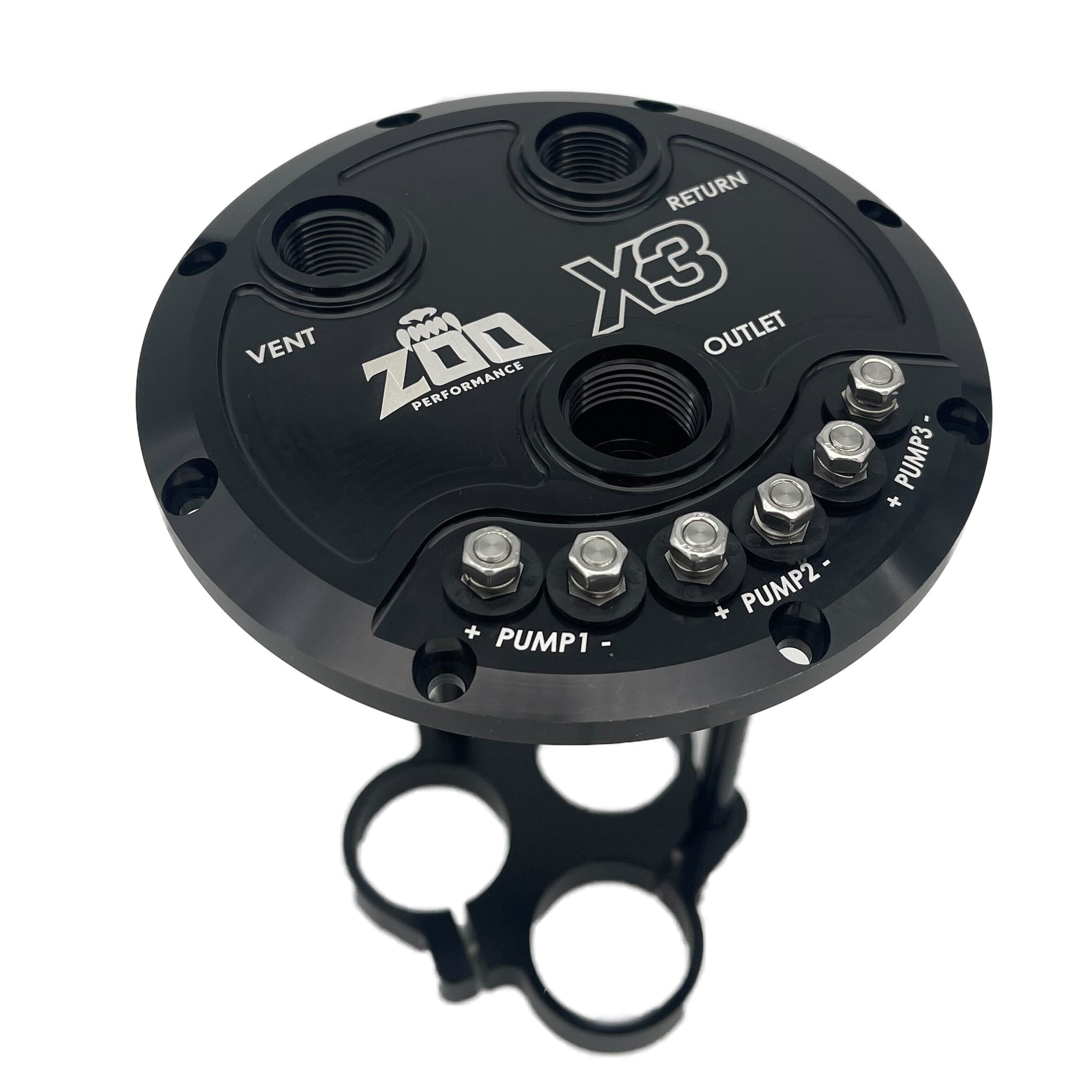

TRIPLE FUEL PUMP HANGER KIT
$396.27
Our NEW and IMPROVED triple pump hangers make it simple and easy to upgrade your fuel delivery system without having to customise or swap out your fuel cell and they are compatible with our twin pump surge tank.

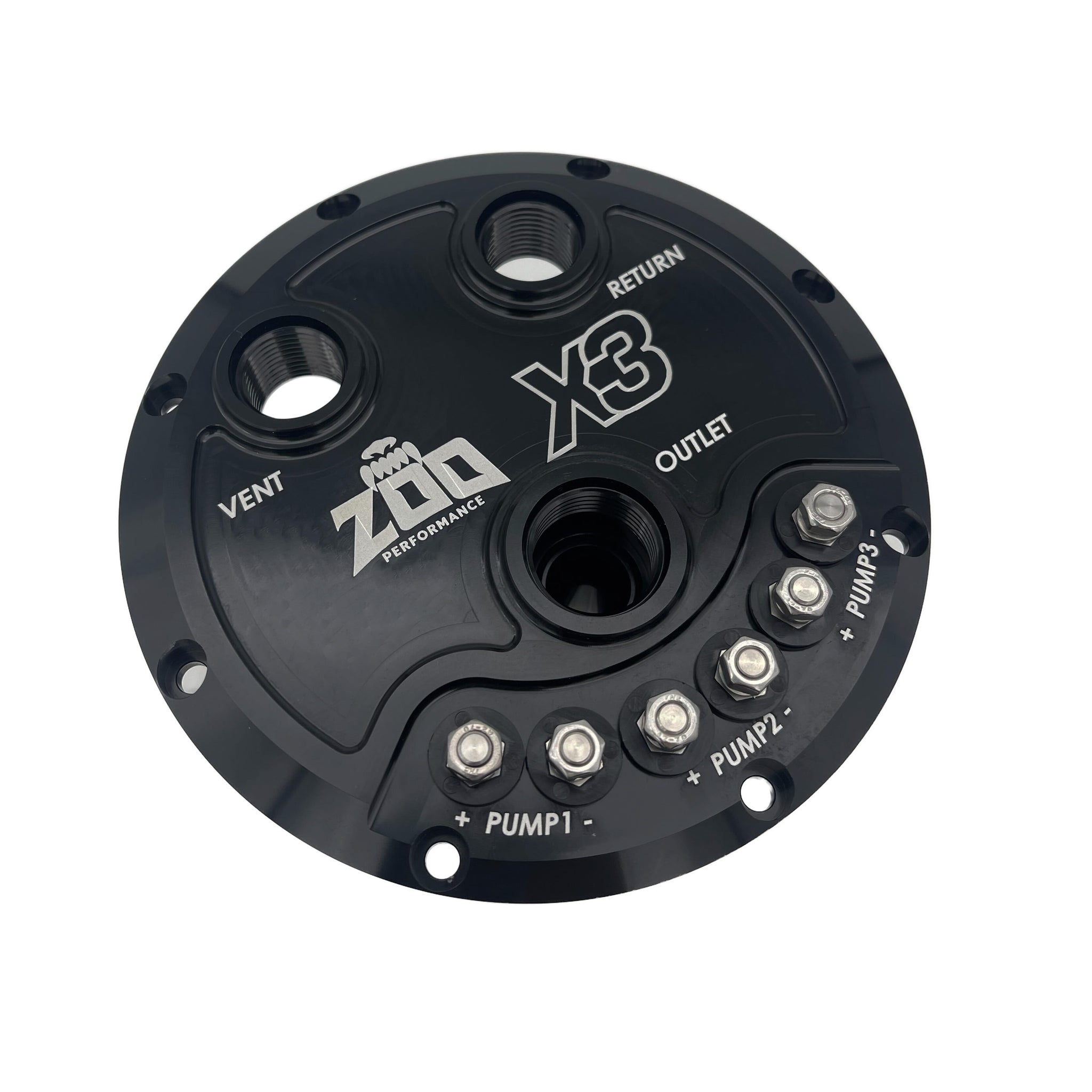

Constructed with individual stainless electrical terminals equipped with hard teflon seals allowing a staged pump opportunity if required.

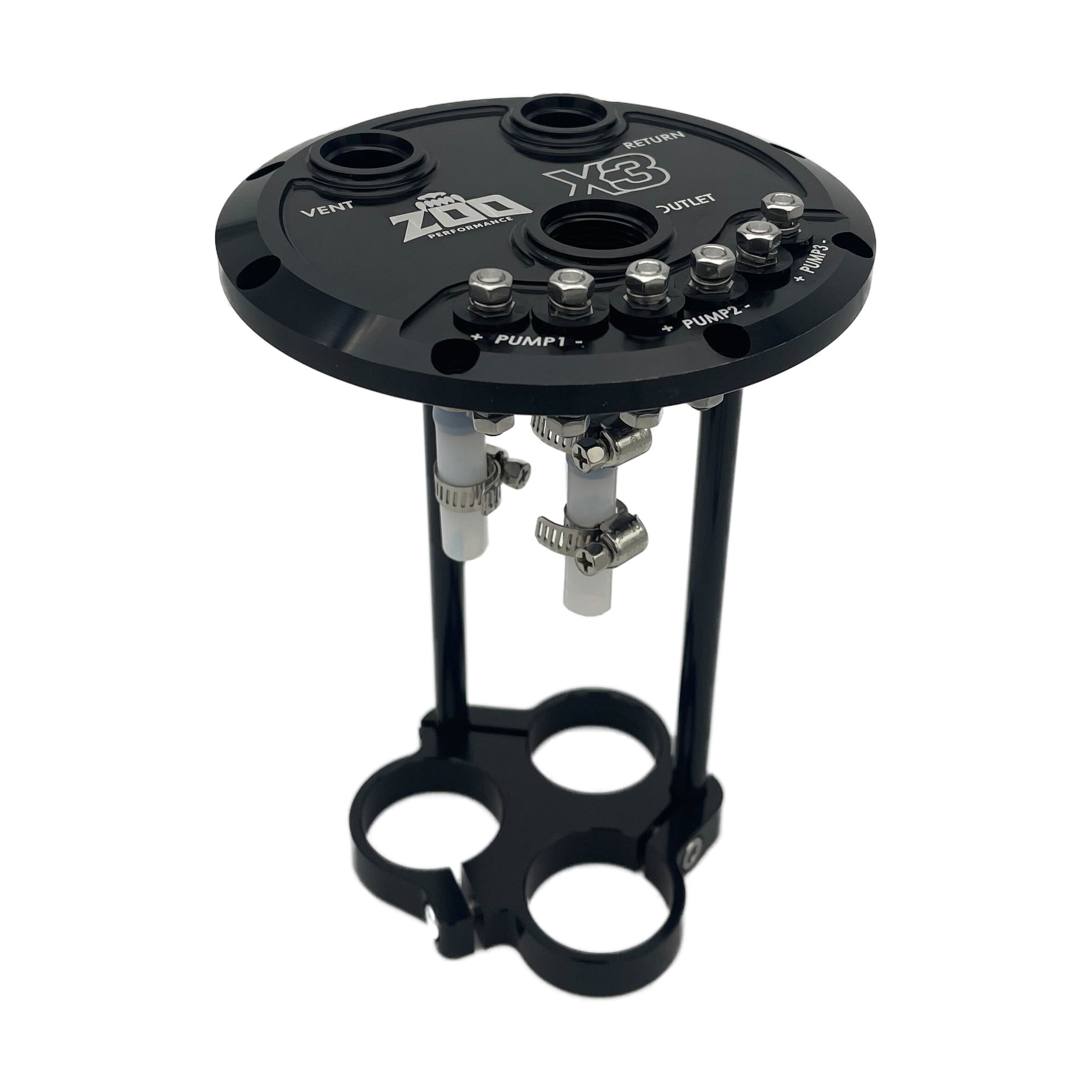

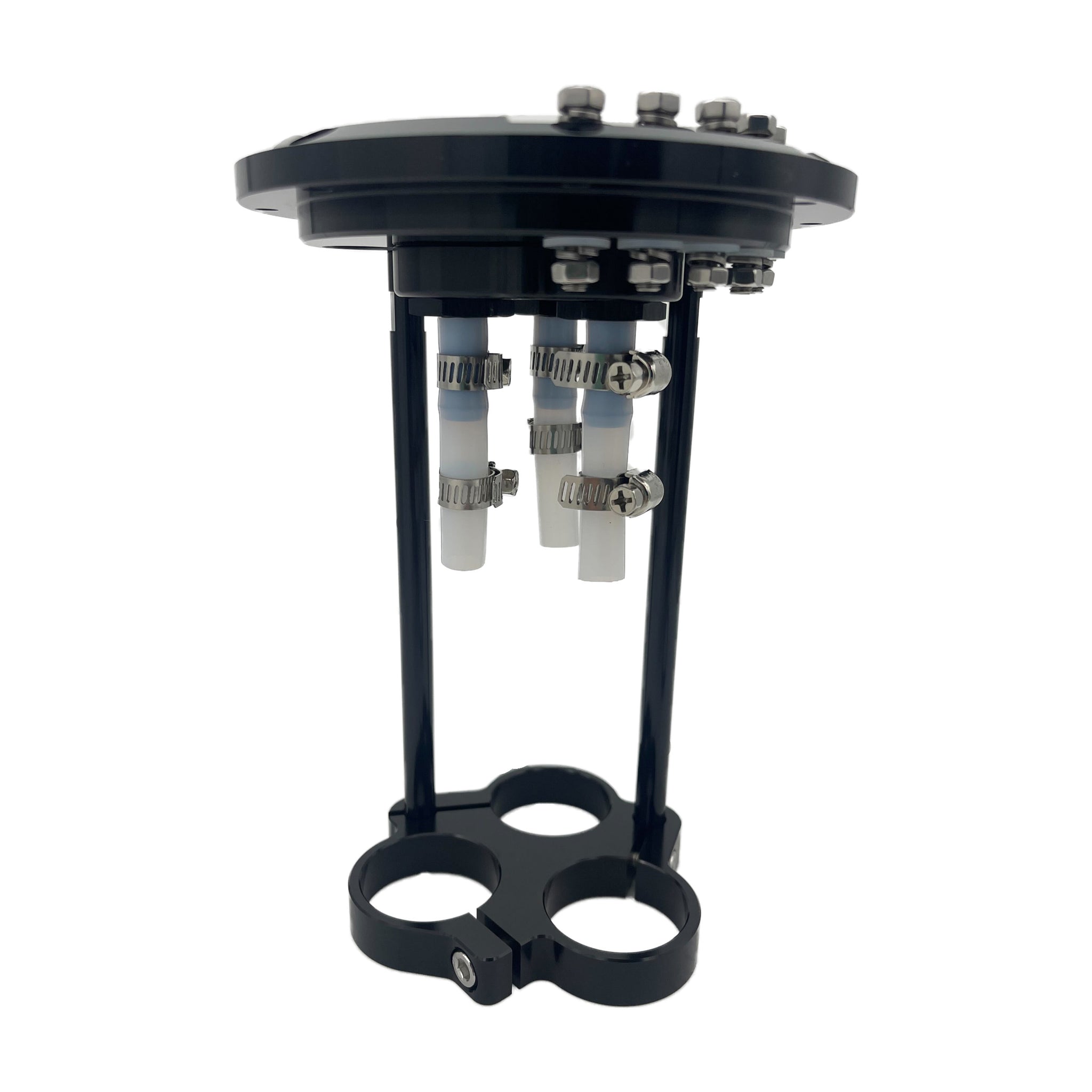

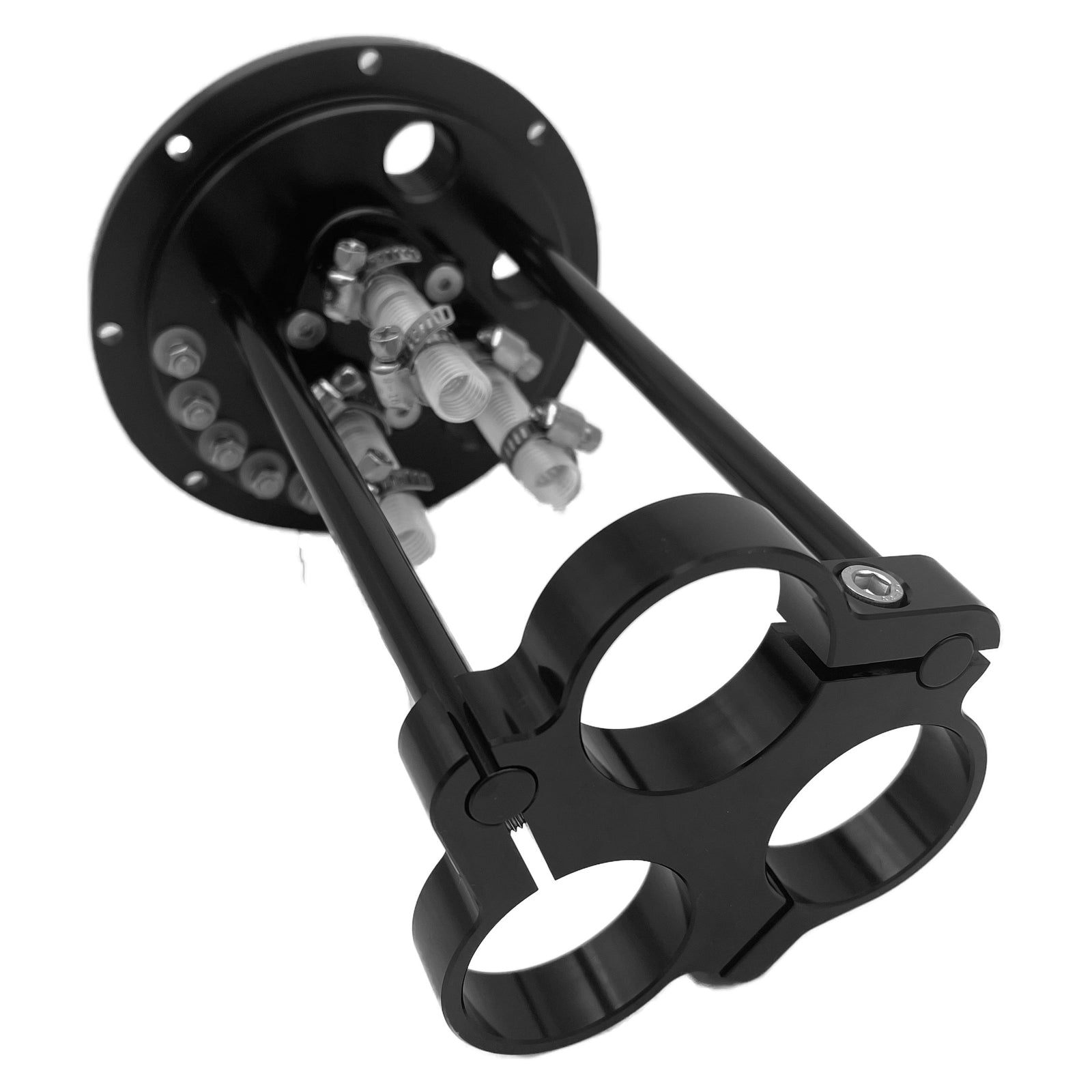

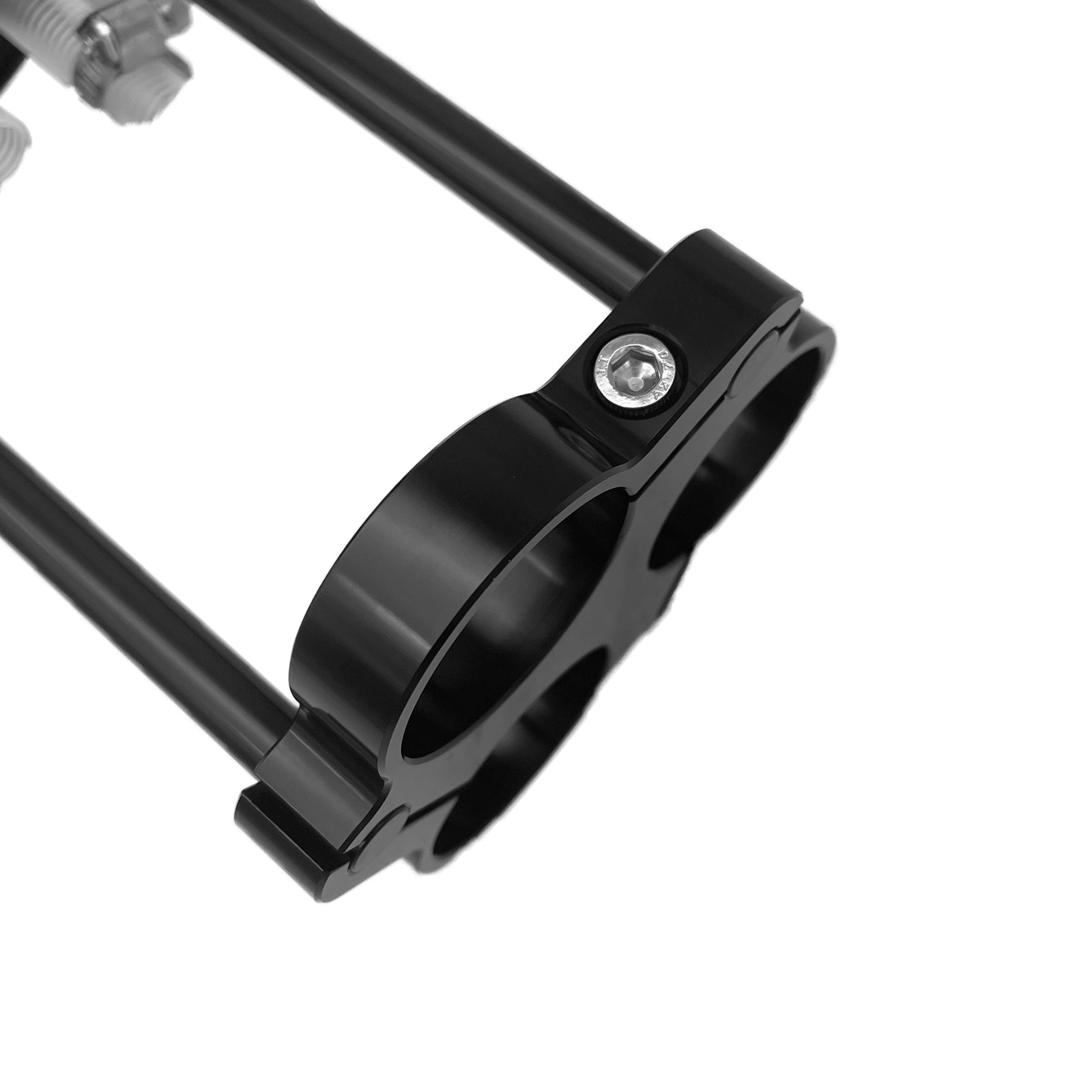

Our height-adjustable mount can secure up to 3 EFI fuel pumps or any 40mm diameter fuel pumps and is hard anodised for longevity, durability and corrosion against E85 and methanol.

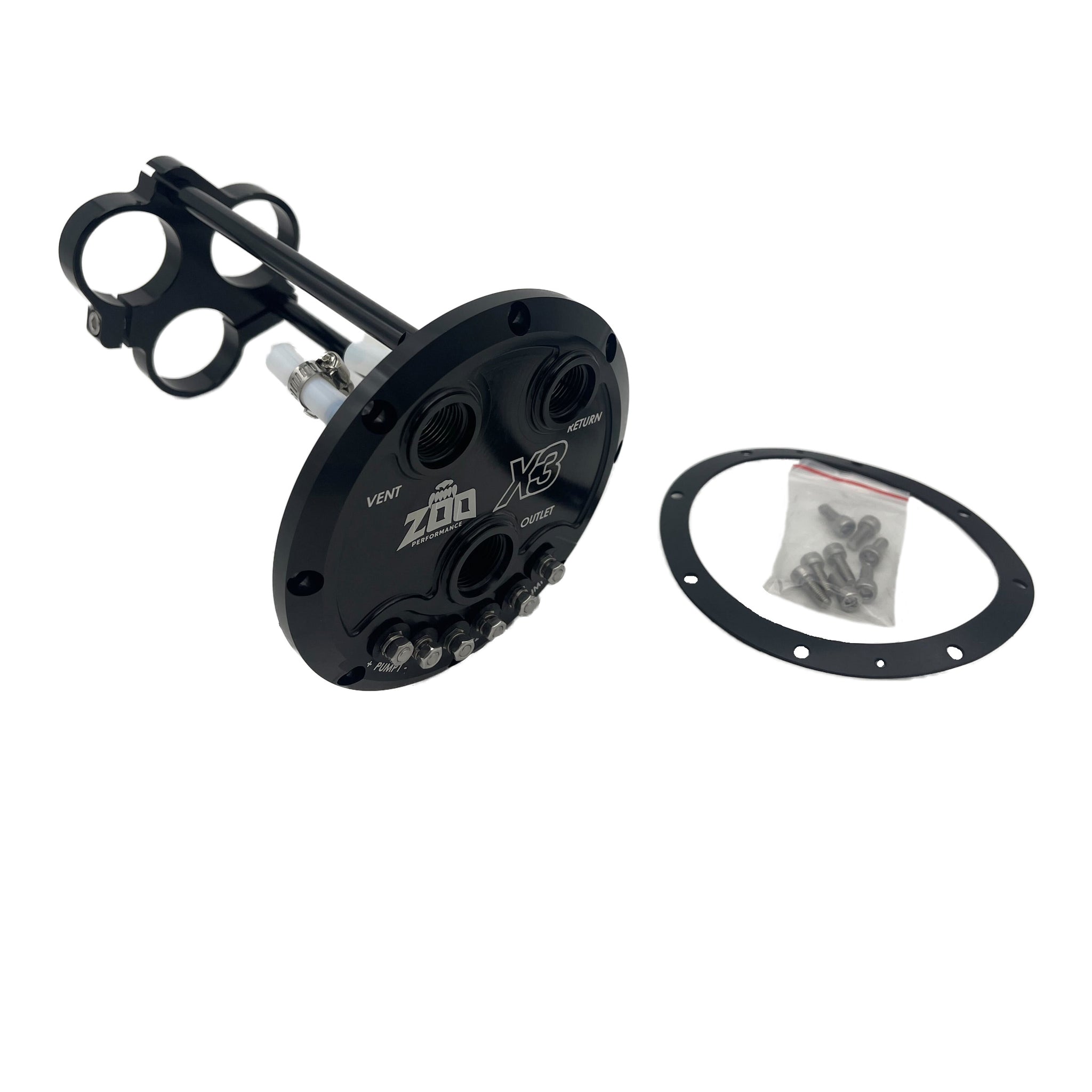

This CNC-machined billet aluminium triple pump hanger is a straight bolt in item - bolts included!
Specifications include:

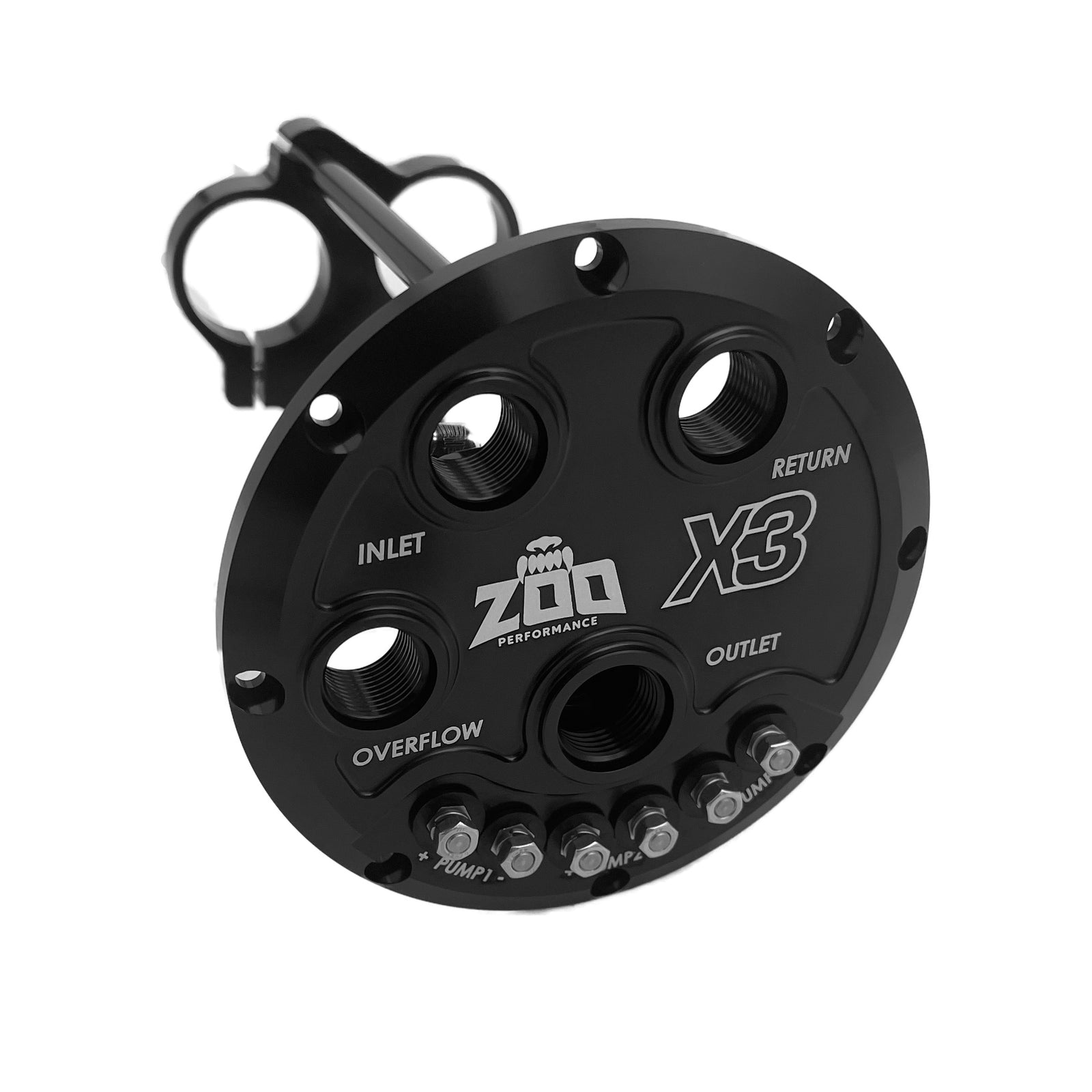

- 140mm diameter faceplate and sits 220mm tall
- Requires a 4" diameter cutout with 8 x mounting bolts (provided) and to be used with 250mm or 10" deep tanks

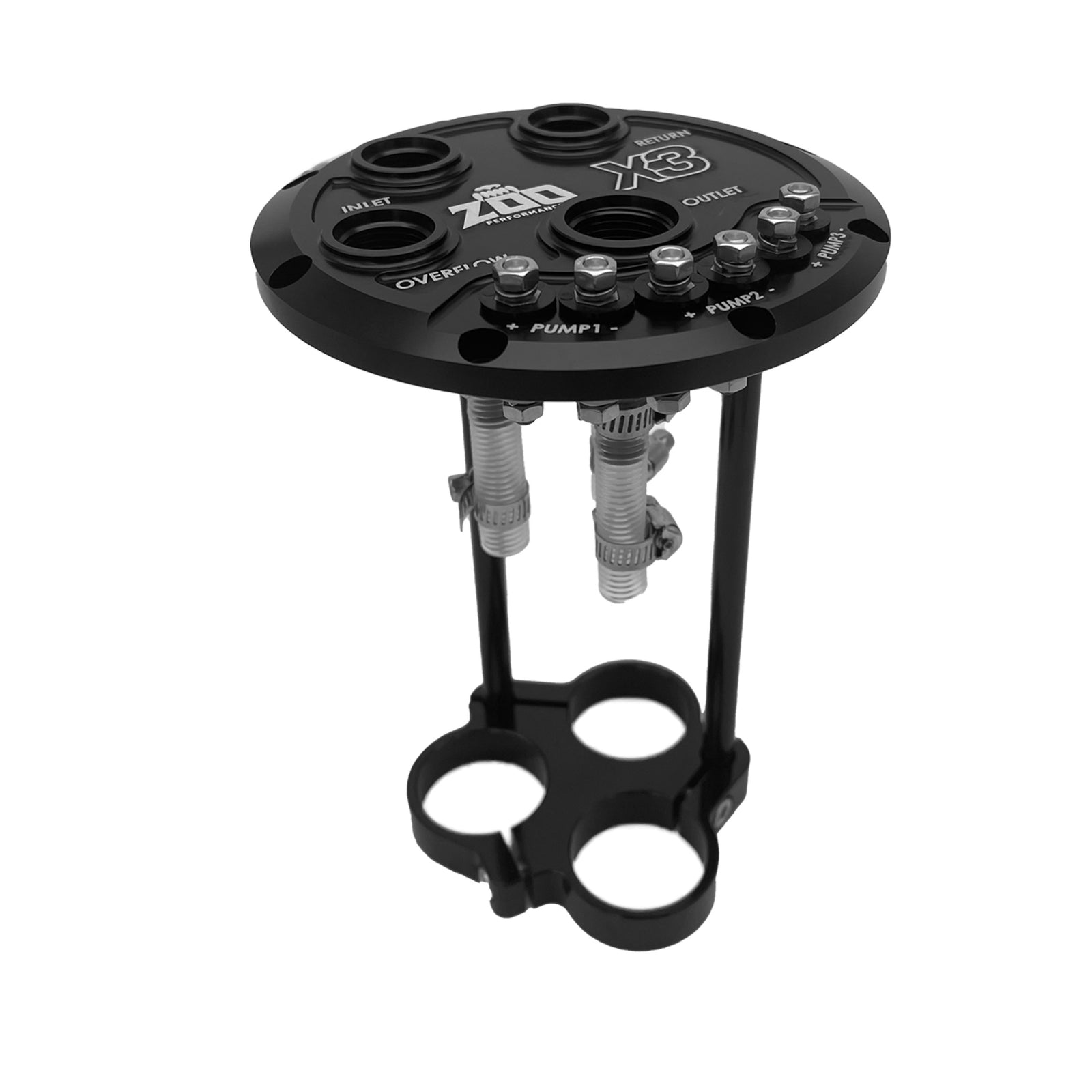

- 1 x -10 ORB outlet for maximum flow
- 2 x -8 ORB Inlet
- 1 x additional -8 ORB port for overflow
