G30-660HP Series 54mm Turbo

ZOO-G30-6601
Regular price
$2,100.00
Sale price
$2,100.00
Regular price
$2,100.00
Sold out
Unit price
per
Tax included.

G30-660 Specifications:

- 350-600HP Rating   / 1.4L - 3.0L Displacement
- Dual Ball Bearing
- Ported shroud compressor cover
- Speed sensor port included in compressor cover.
- Inlet Options:

  • 0.83 A/R with V-Band Inlet
  • 1.01 A/R with V-Band Inlet
  • 1.21 A/R with V-Band Inlet
  • 0.82 A/R with T3 Inlet

- Compressor Specifications:

  • 54mm Compressor Inducer wheel
  • 67mm Compressor Exducer wheel
  • 0.70 A/R
  • Inlet Size:  3" Hose
  • Outlet Size: 2" Hose

- Turbine Specifications:

  • 60mm Turbine Inducer wheel
  • 55mm Turbine Exducer wheel
  • Inlet Size:  3" Hose (Vband)  T3
  • Outlet Size: 3.5" Hose

- Fittings:

  • Water Ports: 2 x M14 x 1.5
  • Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed

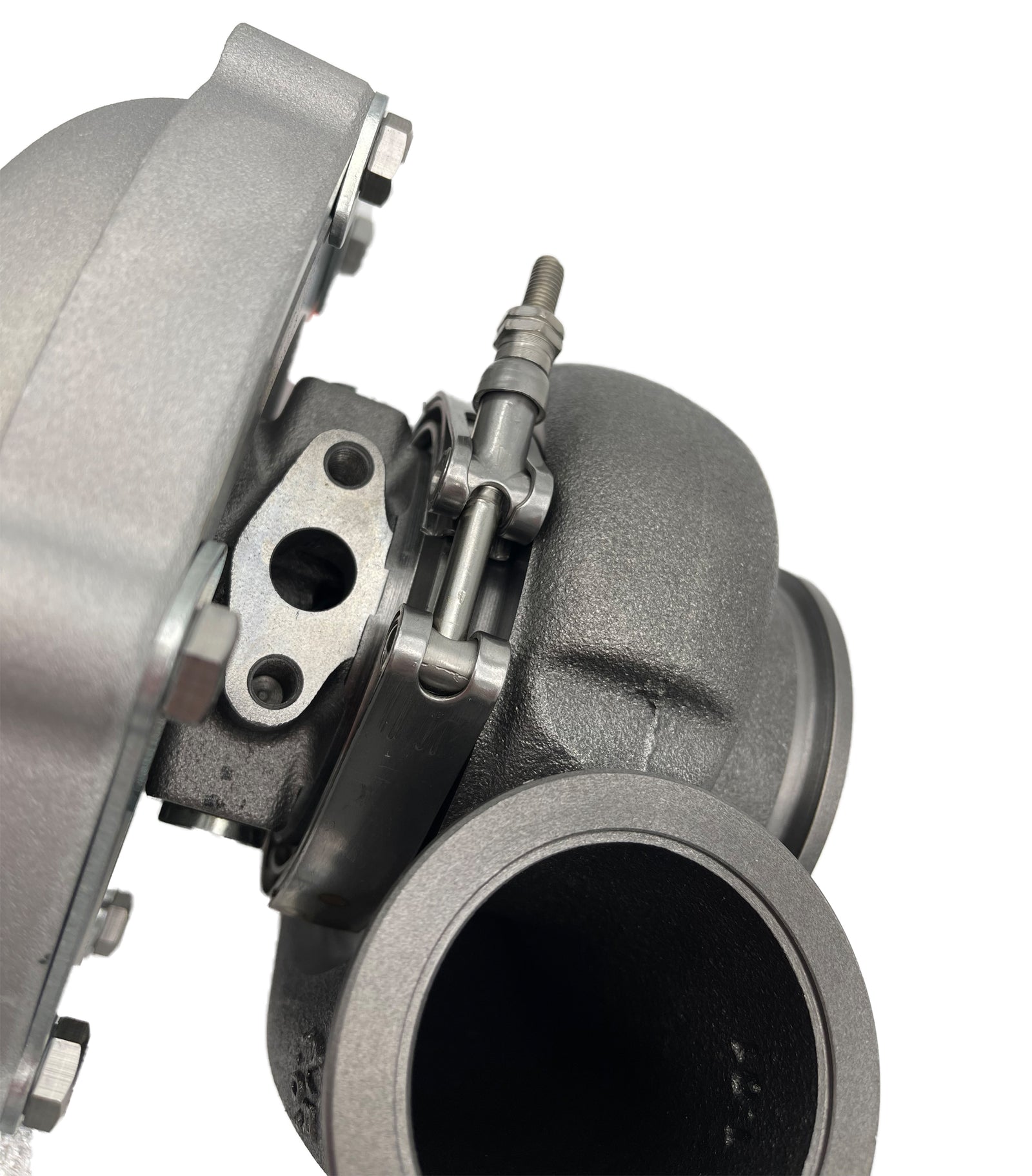

  • Oil Outlet: 38mm (Centre to Centre) Oil Drain Flange

Our G30 Series turbos are manufactured specifically with a combination of the highest quality components and exquisite design with no expense spared!

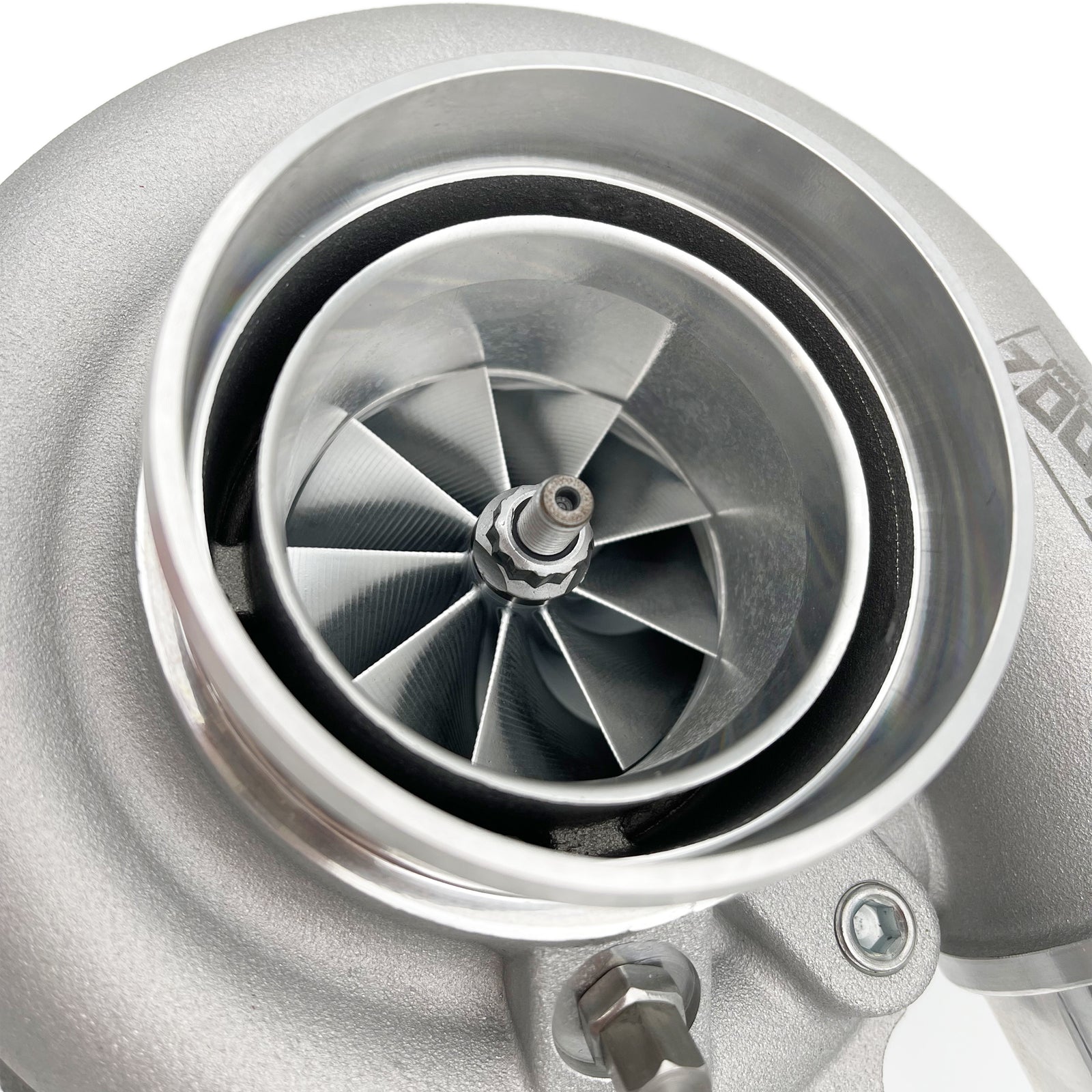

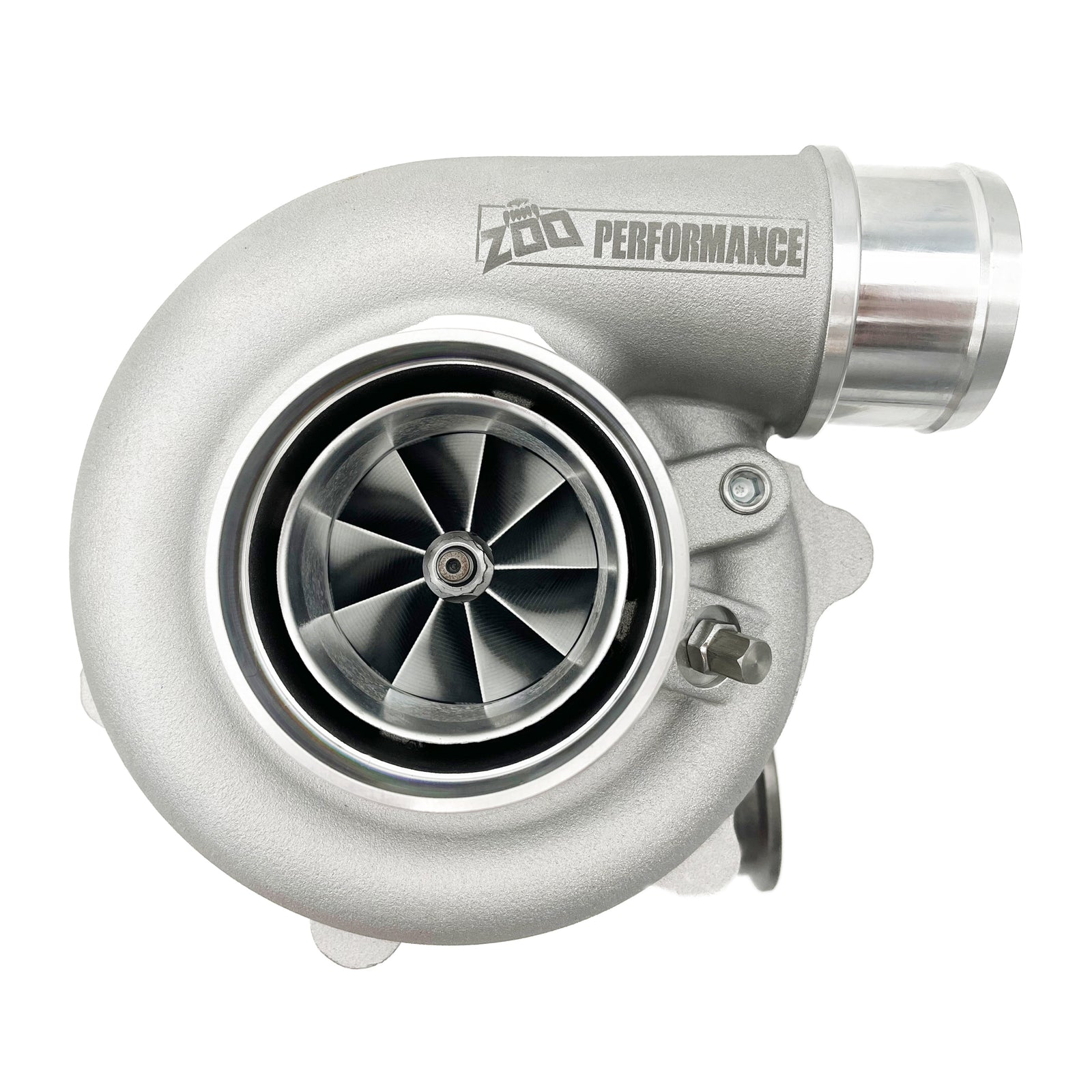

The dual ceramic ball bearing design provides an optimal turbo response and prolongs the lifespan of your turbo. Our G30 series turbos are fitted with a 9-blade point milled billet aluminium compressor wheel with an aerodynamic tapered tip secured inside an aluminium compressor housing.

Our compressor wheels are designed with the latest technology maximizing horsepower and boost response and have temperature ratings of up to 200°C. The compressor housings are also fitted with a speed sensor port as well as an anti-surge compressor wheel inlet to increase surge resistance and provides reliable, continuous power.

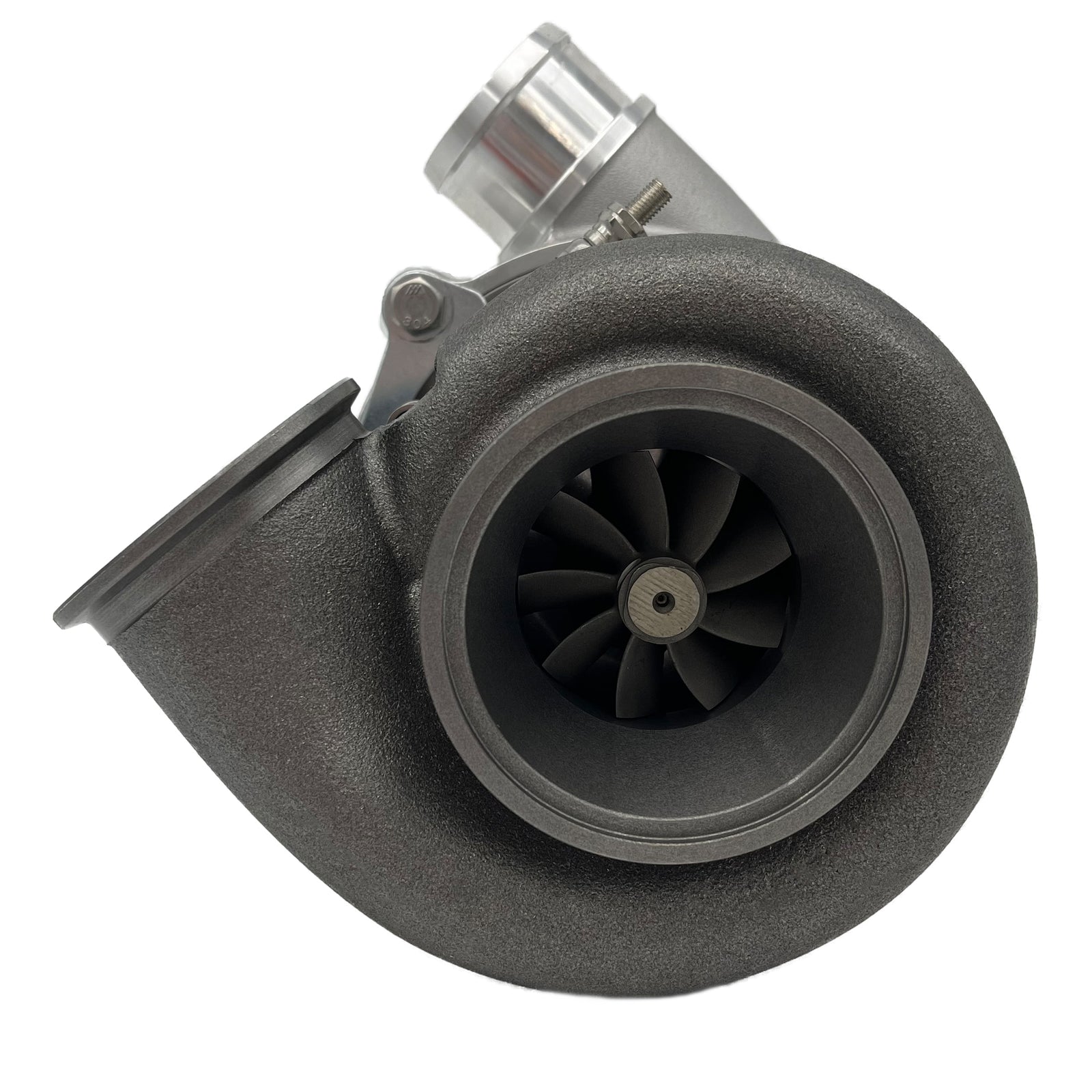

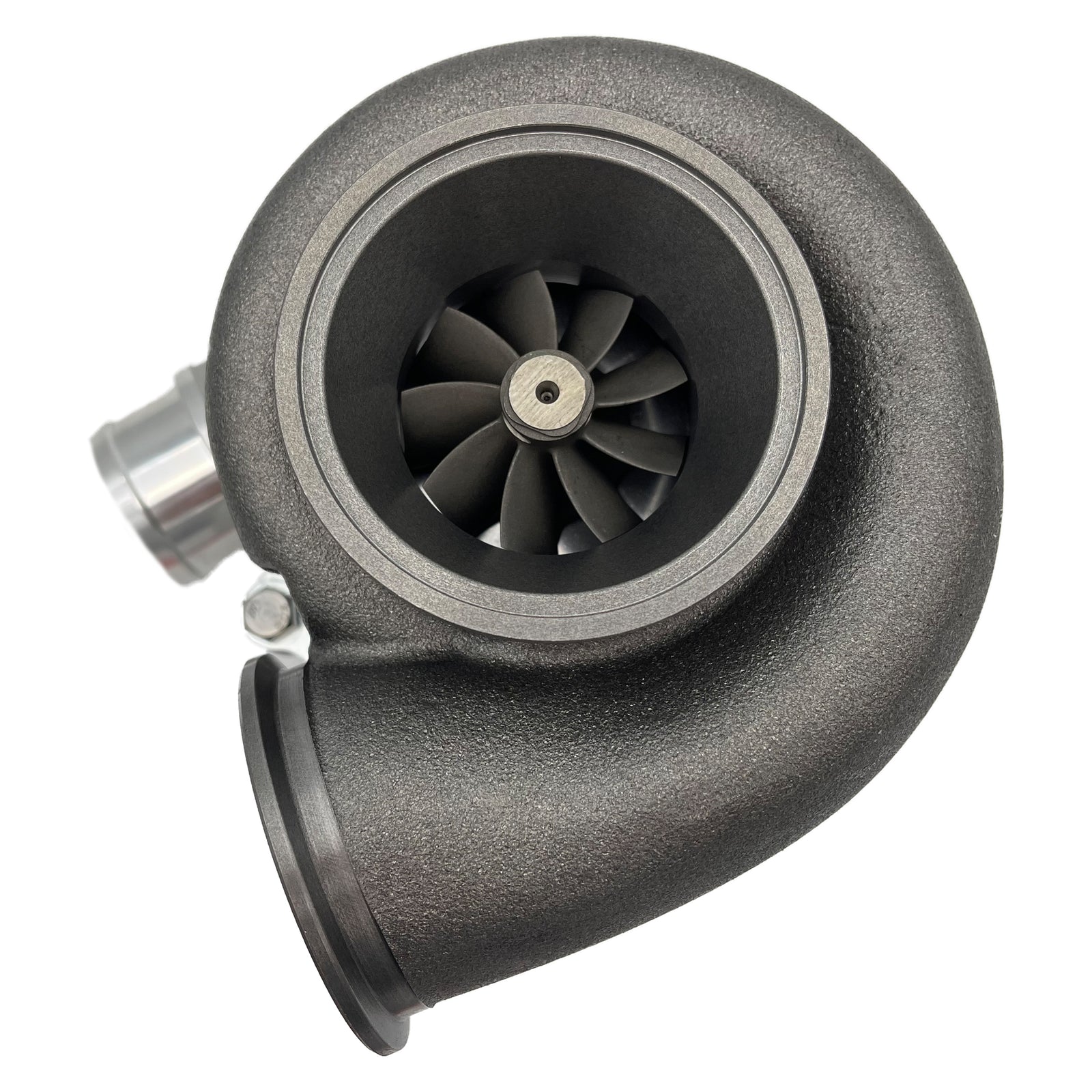

The turbine wheel is manufactured from Inconel which is a high quality super alloy and does a fantastic job at maintaining strength at high operating temperatures of up to 900°C.  Our turbine housings are made from a high grade cast iron providing ultimate durability in these high performance applications.

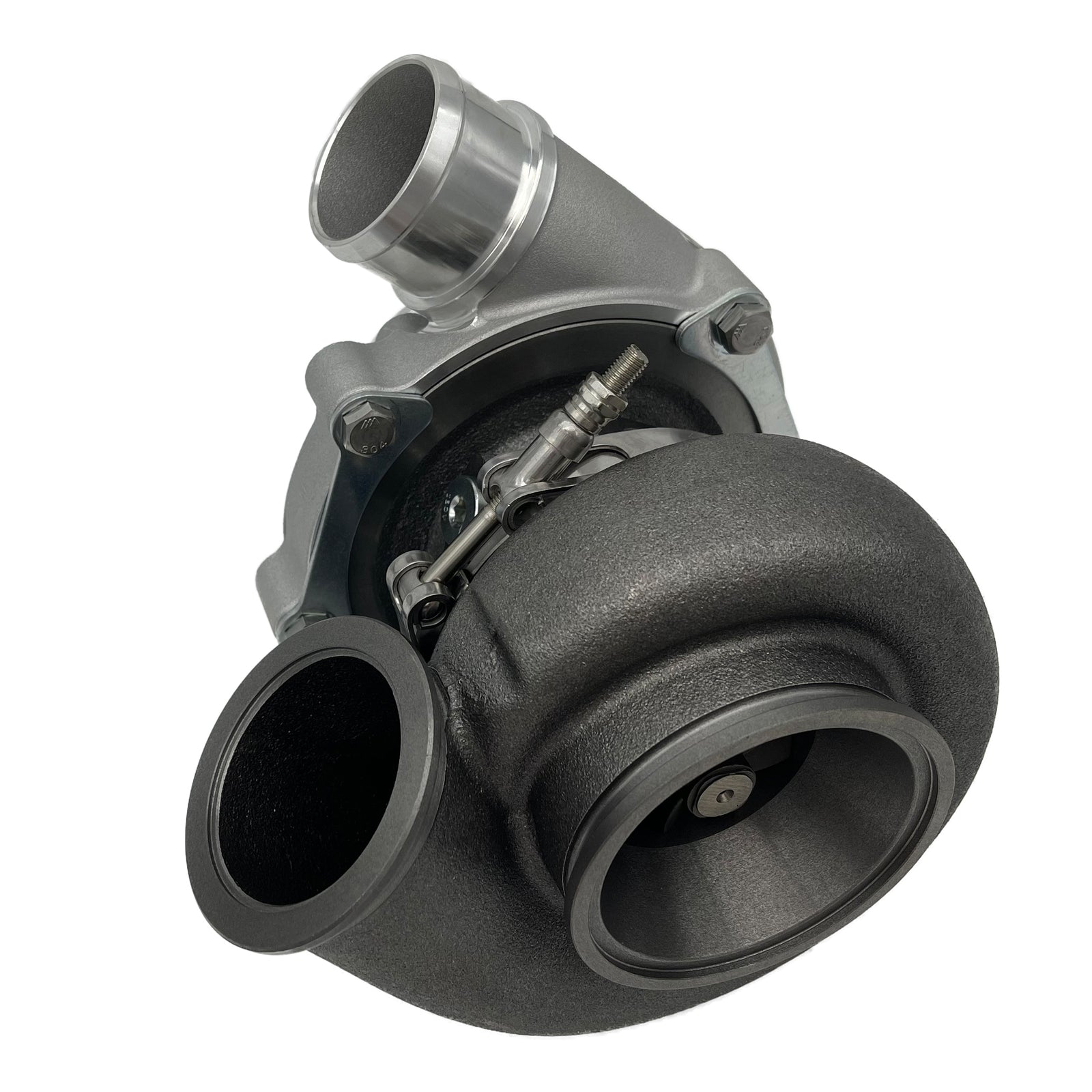

Turbine housing options include V-band inlet and T3 inlet single scroll. Each and every turbo are supplied with all the required parts such as stainless steel polished v-band clamps, flanges, water fittings, turbo drain gasket and NPT 1/4" to -4AN turbo oil feed fitting with 0.9mm restrictor hole.

If you have any further questions please reach out to our friendly staff!
