G35-1050HP Series 68mm Turbo
$2,399.00
G35-1050 Specifications:
- 700-1050HP Rating / 2.0L - 5.5L Displacement
- Dual Ball Bearing
- Ported shroud compressor cover
- Speed sensor port included in compressor cover.
- Inlet Options:
- 0.83 A/R with V-Band Inlet
- 1.01 A/R with V-Band Inlet
- 1.21 A/R with V-Band Inlet

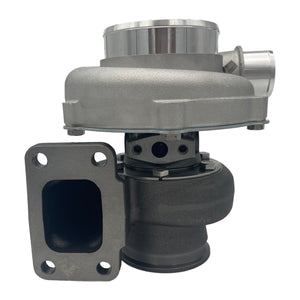

- 0.82 A/R with T3 Inlet
- 0.82 A/R with T4 Inlet
- Compressor Specifications:
- 68mm Compressor Inducer wheel
- 84mm Compressor Exducer wheel
- 0.75 A/R
- Inlet Size: 4" Hose
- Outlet Size: 2.5" Hose
- Turbine Specifications:
- 68mm Turbine Inducer wheel
- 62mm Turbine Exducer wheel
- Inlet Size: 3" Hose, T3 or T4
- Outlet Size: 3.5" Hose
- Fittings:
- Water Ports: 2 x M14 x 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed.
- Oil Outlet: 38mm (Centre to Centre) Oil Drain Flange
Our G35 Series turbos are manufactured specifically with a combination of the highest quality components and exquisite design with no expense spared!

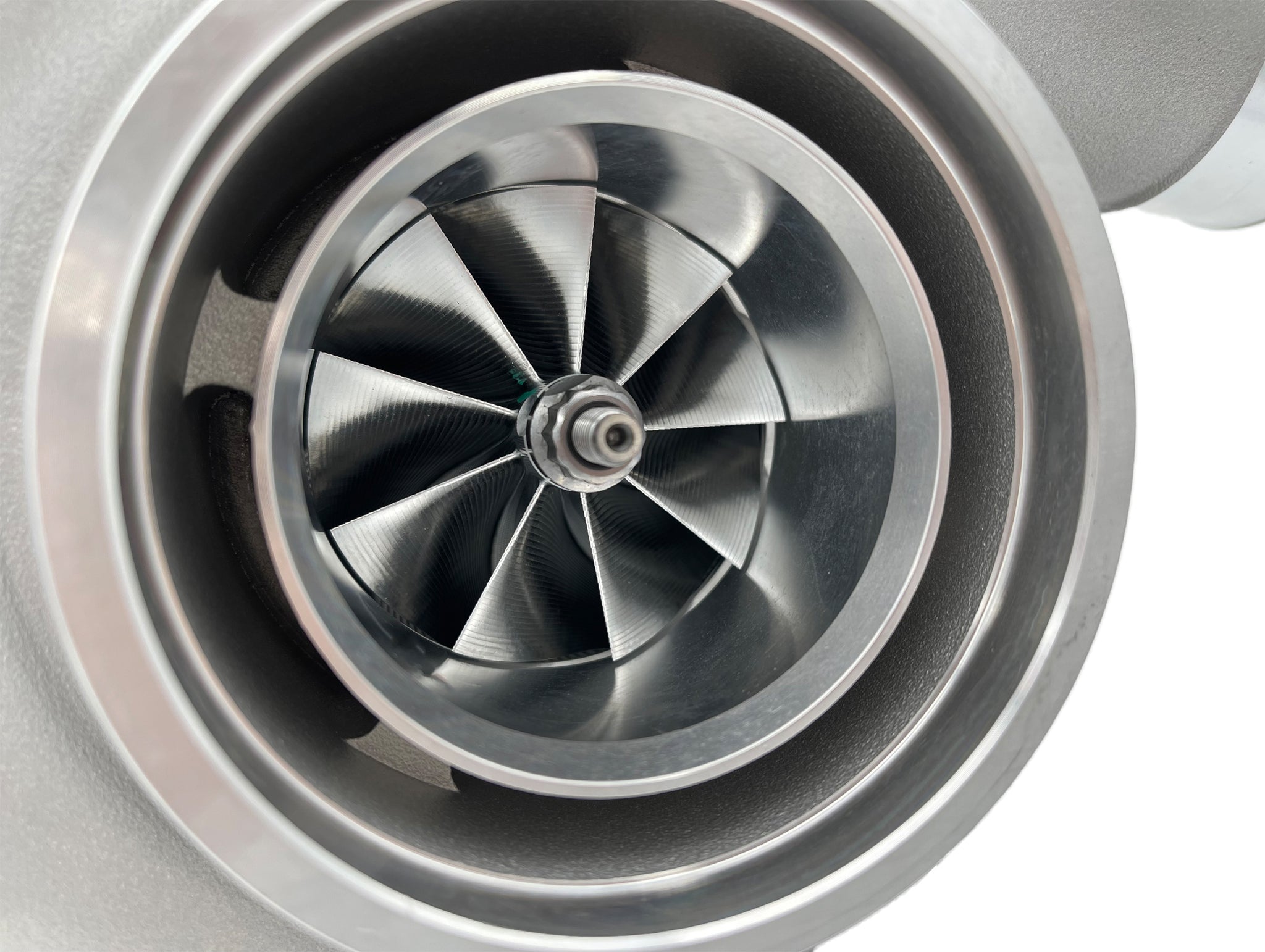

The dual ceramic ball bearing design provides an optimal turbo response and prolongs the lifespan of your turbo. Our G35 series turbos are fitted with a 9-blade point milled billet aluminium compressor wheel with an aerodynamic tapered tip secured inside an aluminium compressor housing.
Our compressor wheels are designed with the latest technology maximizing horsepower and boost response and have temperature ratings of up to 200°C. The compressor housings are also fitted with a speed sensor port as well as an anti-surge compressor wheel inlet to increase surge resistance and provides reliable, continuous power.
The turbine wheel is manufactured from Inconel which is a high quality super alloy and does a fantastic job at maintaining strength at high operating temperatures of up to 900°C. Our turbine housings are made from a high grade cast iron providing ultimate durability in these high performance applications.
Turbine housing options include V-band inlet, T3 & T4 inlet single scroll. Each and every turbo are supplied with all the required parts such as stainless steel polished v-band clamps, flanges, water fittings, turbo drain gasket and NPT 1/4" to -4AN turbo oil feed fitting with 0.9mm restrictor hole.
If you have any further questions, please don't hesitate to contact our friendly team.
